Products >> High-Bays>> T5 HO Fluorescent 4-6 Lamp High-Bay

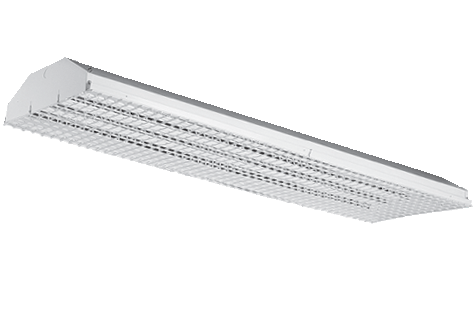

T5 HO Fluorescent 4-6 Lamp High-Bay

Product Features :

  • Advanced high efficiency T5 technology
  • New Engineered Lighting™ design features precision-formed beveled Miro 4™ reflector to achieve maximum light output
  • Delivers more than 19,000 lumens from four economical 54 watt H.O. lamps; replaces H.I.D. fixtures on a one-for-one basis
  • Surface, pendant, chain or stem mounting
  • Optional wireguard with innovative fastener design allows easy lamp access
  • Ideal for most applications ranging from hospitality to office, commercial and industrial

Specifications :

HOUSING: Die-formed heavy-gauge cold rolled steel

FINISH: Post-painted white housing with either Miro 4™ anodized or white aluminum reflector

BALLAST ACCESS: Ballast are accessible by removal of reflector, fastened with eight screws

MOUNTING: Fixtures designed for surface, pendant, stem or chain hanging
Can be installed in tandem configurations

WIREGUARD: (Optional) Combination 6 and 9 ga. wire (A.W.G. Standard) with white
powder-coat finish. Attaches with clips for easy lamp access.

ELECTRICAL: Electronic Ballast 120V, 277V, or 347V

APPROVALS: Certified CUL and UL
