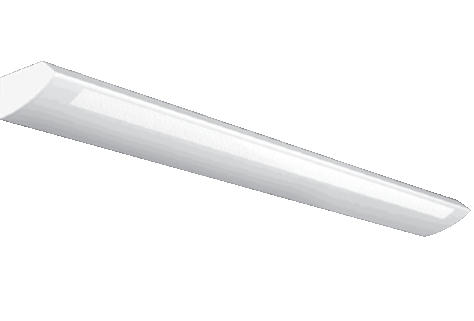

Second Avenue

Product Features :

  • Companion to the Fifth Avenue linear luminaire
  • Wall mount indirect luminaire with forward throw optics
  • Computer designed optical system that maximizes the output of T5 or T8 Lamps, producing minimal back-lighting on the wall and maximum forward throw
  • Ideal for corridors or small offices needing indirect lighting, as well as Hospital corridors

Specifications :

HOUSING: Bare 20-gauge formed steel housing in solid or perforated patterns
Die cast aluminum joiners installed for structural continuity and for
attaching other units for continual runs or end caps
Unit mounts to a wall bracket that compensates for uneven surfaces and
allows for recessed electrical boxes

ELECTRICAL: Electronic Ballast 120V, 277V, or 347V

ACCESSORIES: Mount Brackets, Fittings, Tamper-Proof Driver Bit

OPTIONS: Dimming Ballast, Emergency power pack

APPROVALS: Certified CUL and UL
