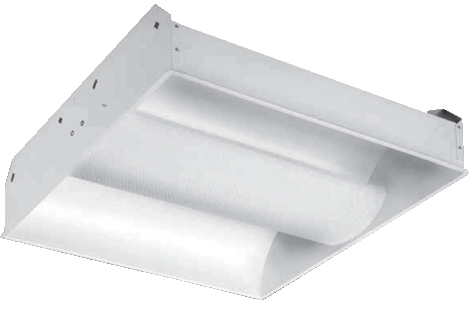

IDR SERIES 2 X 2

Product Features :

  • Housing and lamp compartment are fully recessed above the ceiling plane, and there is no visible light source or apparent glare
  • Frame accommodates 2 T8 Lamps, 2 or 3 Biax,
    Dulux L or PL-L lamps with 2G11 bases
  • The perforated baffle and curved reflector produce a combination of direct and indirect light, fully illuminating the fixture
  • Standard troffer mounting for easy installation in T-bar ceilings
  • Provides soft, balanced illumination for a contemporary appearance and comfortable light environment

Specifications :

HOUSING: Die-formed heavy-gauge cold rolled steel
Pre-treated with iron phosphate for superior paint adhesion
Low gloss, high reflectivity powder coat finish

ELECTRICAL: Electronic Ballast 120V, 277V, or 347V

OPTIONS: Standard troffer mounting for easy installation in T-bar ceilings

APPROVALS: Certified CUL and UL
