| T5G |  |
||

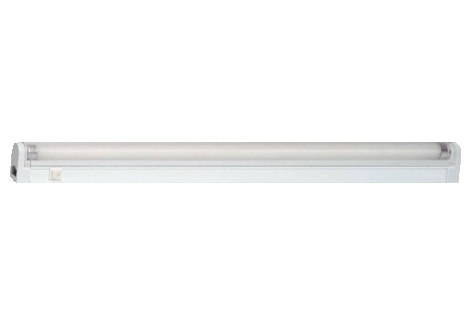

| T5 GROUNDED LINKABLE MICRO FLUORESCENT fixture is a series of commercial grade linkable fixtures widely used in both residential and commercial applications using T5 (5/8") fluorescent lamps. The instant start, silent electronic ballast is housed in an extruded aluminum housing. The lamp sockets that sit at each end of the fixture are only 0.50" in length, vastly saving space and reducing dark spots when linking fixtures. | |||
|

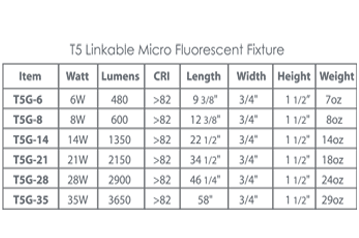

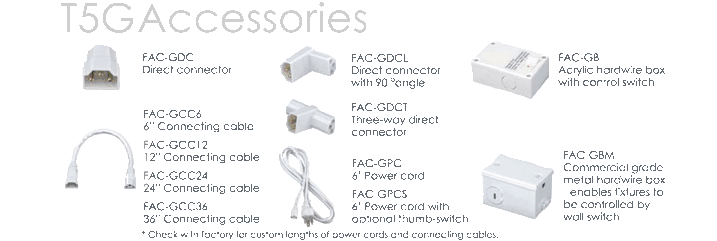

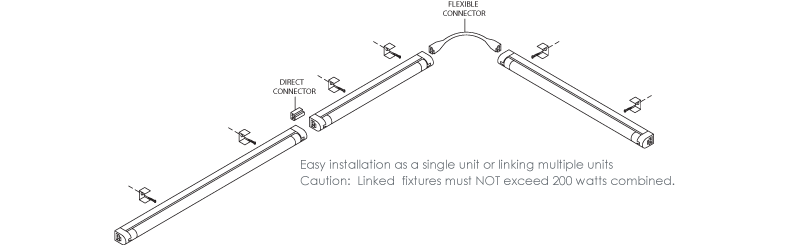

Linkable:Fixture can be installed as a single unit or as multiple 6 Wattages: 6, 8, 14, 21, 28 or 35 watts/fixture. Heat: Gives off very little heat. Ballast: Built-in electronic ballast provides instant-on start, no flicker, and silent operation. Lens Cover: Includes a clear, ribbed, attractive, easy-to-clean acrylic cover to protect the fluorescent lamp. Lamps: Uses T5 (5/8" diameter) tri-phosphorus fluorescent lamp with optional Color Temperatures pf 3000K (warm white), 4100 (cool white), 5000 (architectural white) or 6400K (daylight). Lamp Life: 18,000 hours (lamp may easily be replaced). Complete Unit: T5 Linkable Micro Fluorescent fixture includes a T5 fluorescent lamp, acrylic lens cover, one direct connector, and 2 mounting clips & screws. Listing: UL Listed and C-UL Listed. Caution:Maximum wattage in one "ganged" line of T5 fixtures is 200 watts. However, if only the 28-watt fixtures or the 35-watt fixtures are connected in a single circuit, only 5 of these fixtures may be “ganged” together. | |||
 |
 |
||
 | |||
 | |||
