T4G

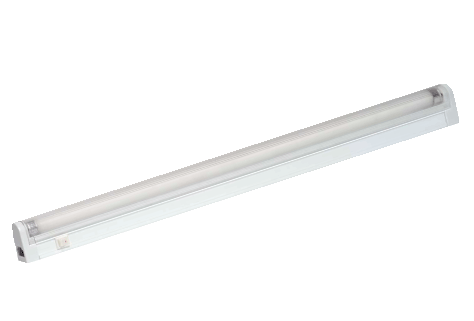

T4 GROUNDED LINKABLE MICRO FLUORESCENT fixture is highly recommended for projects that require grounding. The commercial grade T4 grounded linkable micro fluorescent fixture is grounded throughout the whole fixture and consists of the same physical similarities with its predecessor ........ the T4 Linkable Micro Fluorescent fixture.

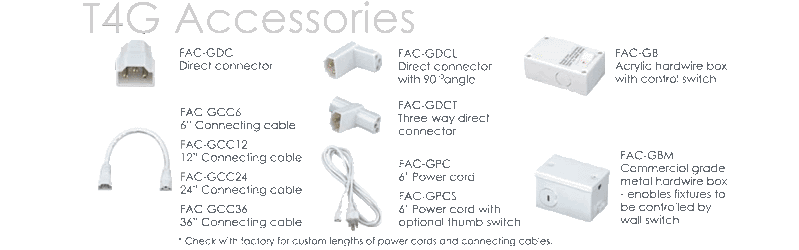

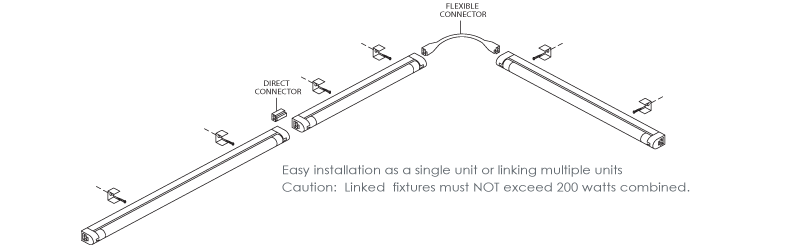

Linkable: Fixture can be installed as a single unit or as multiple units connected in line with Direct Connectors and/or Flexible Connectors of 6", 12", 24" or 36".

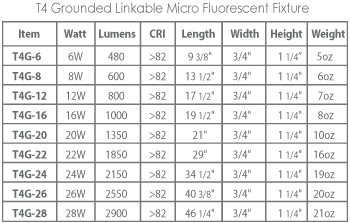

9 Wattages: 6, 8, 12, 16, 20, 22, 24, 26 or 28 watts/fixture.

Heat: Fixture gives off very little heat.

Rocker Switch: All of the fixtures (except 6 watts) come equipped with a built-insmall rocker switch right on the side of the fixture.

Ballast: Built-in electronic ballast provides instant-on start, no flicker, and silent operation.

Lens Cover: Includes a clear, ribbed, attractive, easy-to-clean acrylic cover to protect the fluorescent lamp.

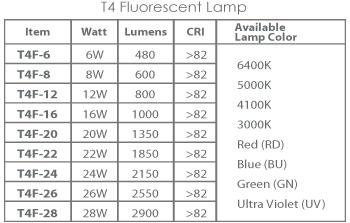

Lamps: Uses T4 (1/2" diameter) tri-phosphorous fluorescent lamp with optional Color Temperatures of 3000K (warm white), 4100K (cool white), 5000K (architectural white) or 6400K (daylight).

Colored T4 lamps are also available: Red, Blue, Green and Ultra Violet.

Lamp Life: 18,000 hours (lamp may easily be replaced).

Complete Unit: T4 Linkable Micro Fluorescent fixture includes a T4 fluorescent lamp, acrylic cover, a built-in on/off rocker switch located on side of the fixture (except 6 watts), a 6ft power cord with a two-prong polarized plug, one direct connector and 2 mounting clips & screws.

Listing: UL Listed and C-UL Listed.

Caution: Maximum wattage in one "ganged" line of T4 fixtures is 200 watts. However, if only the 22-watt, 24-watt, 26-watt fixtures or the 28-watt fixtures are connected in a single circuit, only 5 of these fixtures may be “ganged” together.
