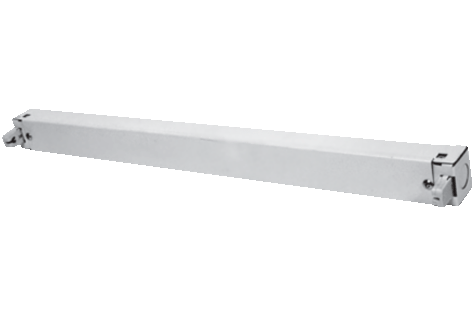

T5 Low Profile Page

Product Features :

  • Advanced high efficiency T5 technology
  • Ultra slim design
  • Available in both "lamp lengths" and in "full imperial lengths"
  • Continuous row mounting capability
  • Designed for ceiling mount, wall mount or chain hanging
  • Ideal for most fluorescent lighting applications, including general illumination, cove lighting and display cases

Specifications :

HOUSING: Rigid die formed heavy gauge cold roll steel
End caps serve as continuous row mounting couplers
7/8" K.O. provided at top and end of fixture for wire entry
Highly reflective baked White enamel finish

ELECTRICAL: Electronic Ballast 120V, 277V, or 347V

OPTIONS: Dimming ballast, emergency power pack, wireguards, reflectors, wiring harness,
14-3 SJT wire, 15 feet complete with molded plug 15 AMP 125 V receptacle

APPROVALS: Certified CUL and UL
