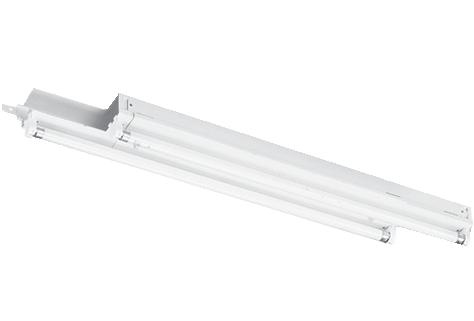

T8 Stagger Strip

Product Features :

  • Advanced high efficiency T8 technology

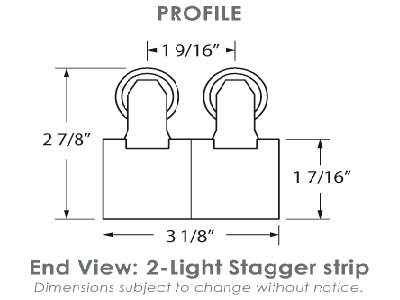

  • 4" offset provides even, shadow-free lighting in continuous row installations
  • Designed for ceiling or wall mounting
  • Ideal for perimeter cove lighting, retail display cases and similar under cabinet uses

Specifications :

HOUSING: Die-formed heavy gauge cold-rolled steel
All close-tolerance snap-fit construction
Pre-painted white enamel with 85% minimum reflectivity
Numerous KO's for ease of installation and configuration
End plates come standard with 7/8" KO for continuous mounting

CHANNEL/WIREWAY COVER: Secures with two cam-locks (not included) for tool-free access

ELECTRICAL: Electronic Ballast 120V, 277V, or 347V

APPROVALS: Certified CUL and UL
