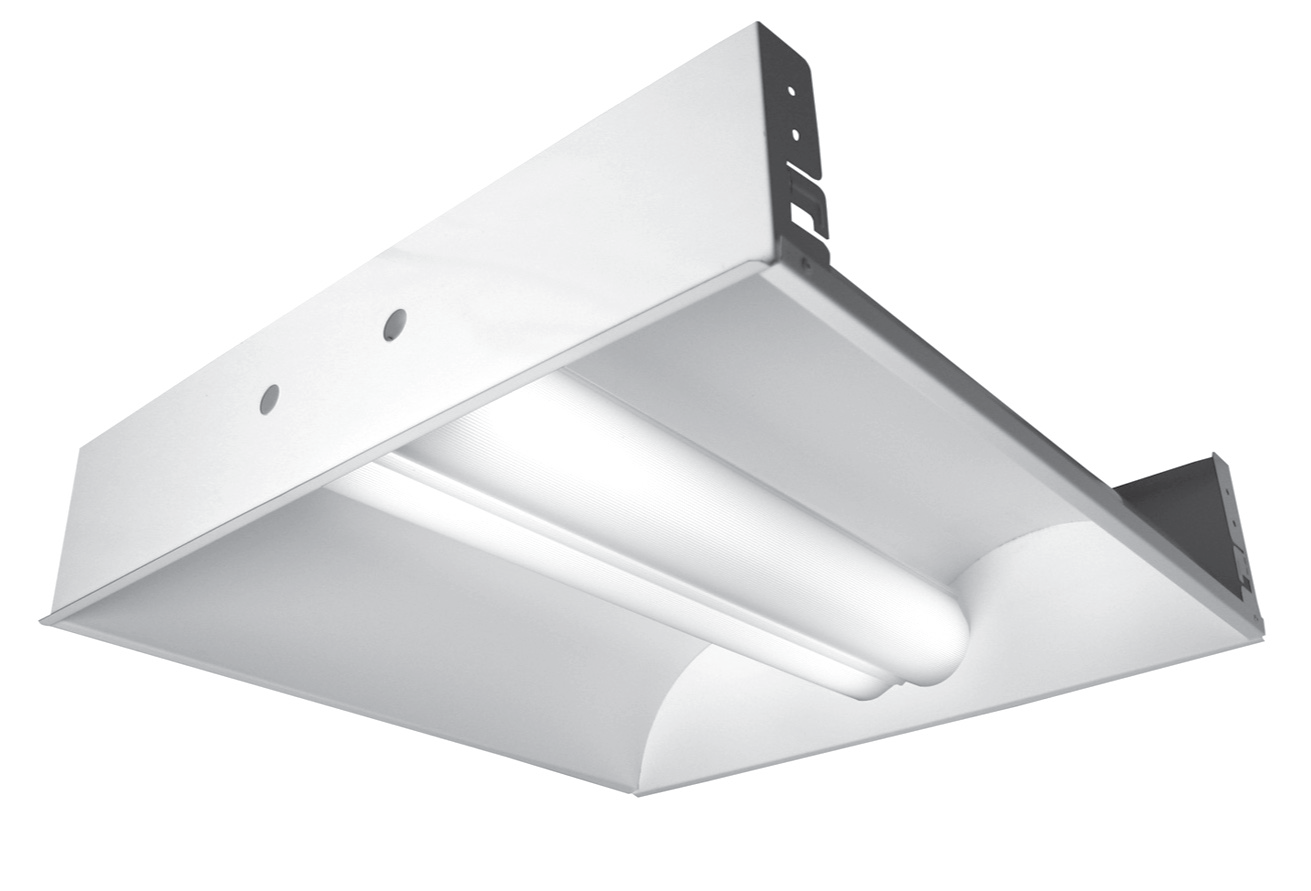

Products >> Recessed >> T5/T5HO IDRDB SERIES RECESSED 2X4

Product Features :

  • The housing and lamp modules are fully recessed above the ceiling plane, minimizing lamp exposure. The acrylic lens wraps around the laps to provie the ideal combination of efficiency and aesthetics
  • Frame accommodates T5 or T5HO lamps
  • The curved reflectors produce a combination of direct and indirect light, fully illuminating the fixture housing.
  • The basket is clear acrylic "Double Bubble".
  • Provides a low-brightness glow, with the majority of the light controlled through the center

Specifications :

HOUSING: Die-formed heavy-gauge cold rolled steel, pre-treated with iron phosphate for superior paint adhesion, low gloss, high reflectivity powder coat finish

MOUNTING: Standard troffer mounting for T-bar ceilings, with earthquake feature

ELECTRICAL: Electronic Ballast 120V, 277V, or 347V

LENS OPTION: High transmission extreded acrylic baskets

APPROVALS: certified CUL and UL
