Products >> High-Bays >> T5/T5HO/T8

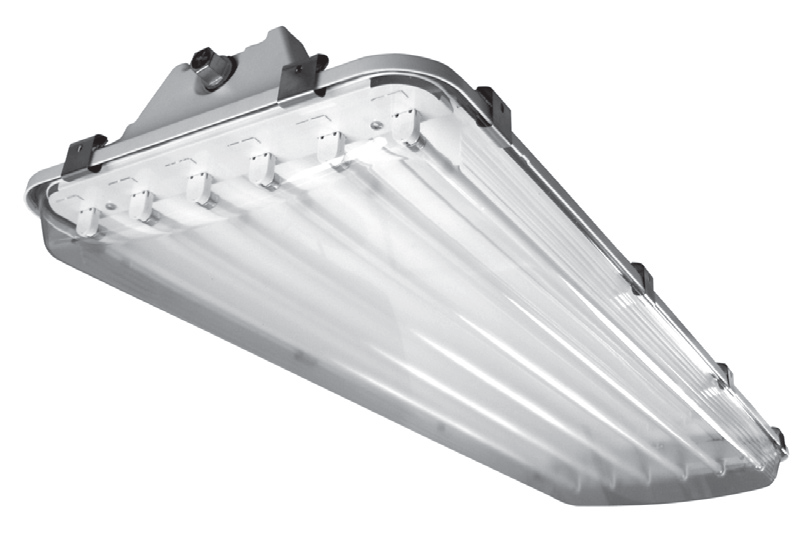

T5/T5HO/T8 CENTURY HIGH BAY 4 AND 6 LAMP FOR WET AND DRY LOCATION IP65 & IP67 RATED

Product Features :

  • The century Hgih Bay is stuitable for a wide range of high bay applications and an ideal replacement for 150W-400W metal halide and high pressure sodium lighting systems.
  • Innovative design features make it suitable for environmments that may reach a maximum ambient temperature of 40C
  • IDEAL:Food processing facilities, sports complexes, warehouses, outdoor canopies, cold storage facilities, and manufacturing facilities

Specifications :

HOUSING & HEAT SHIELD: Reinforced polyester compound UL 5VA flammability and F1 weatherability rated

GEAR TRAY: Pre-painted white cold-rolled steel with 87% reflectivity

REFLECTOR: Miro 4 reflector available in narrow distribution Specular reflector available in narrow distribution

LENSES: Clear impact modified acrylic or clear UV stabilized polycarbonate

GASKETING: En-Seal continious poured gasket

LATCH: Captive, tamper-proof stainless steel cam-action latch

MOUNTING BRACKET: 2 stainless steel mounting bracket kits

CONDUIT FITTING: 7/8" Housing end holes (2)

ELECTRICAL: Electronic Ballast, 120V, 277V, or 347V

ACCESSORIES: Mount Brackets, Fittings, Tamper-Proof Driver Bit

APPROVALS:Certified CUL And UL
